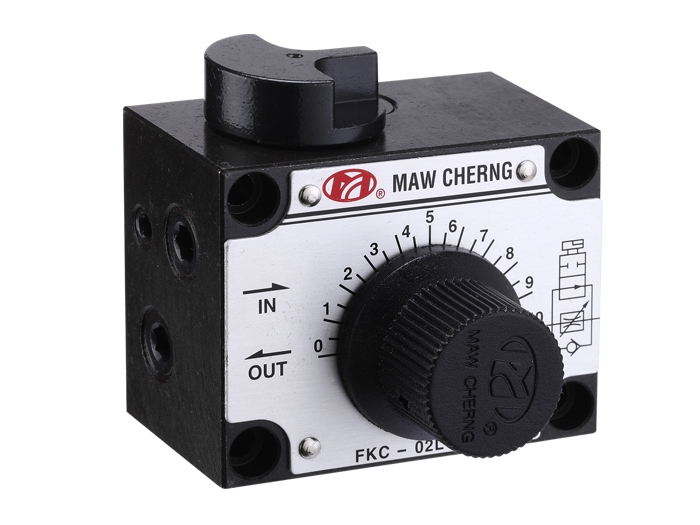

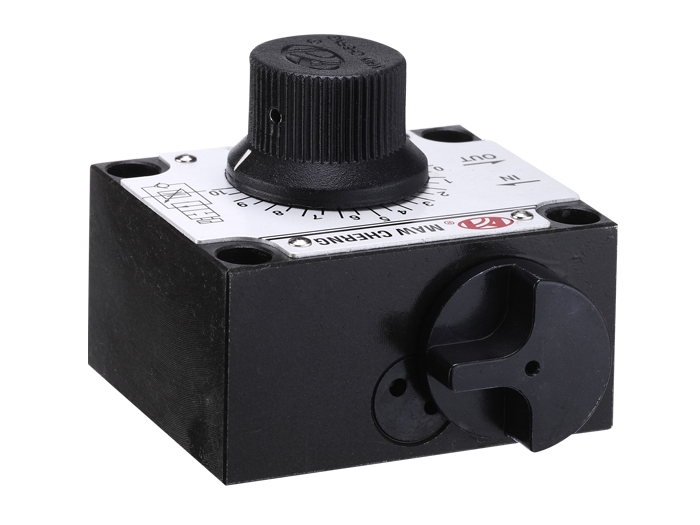

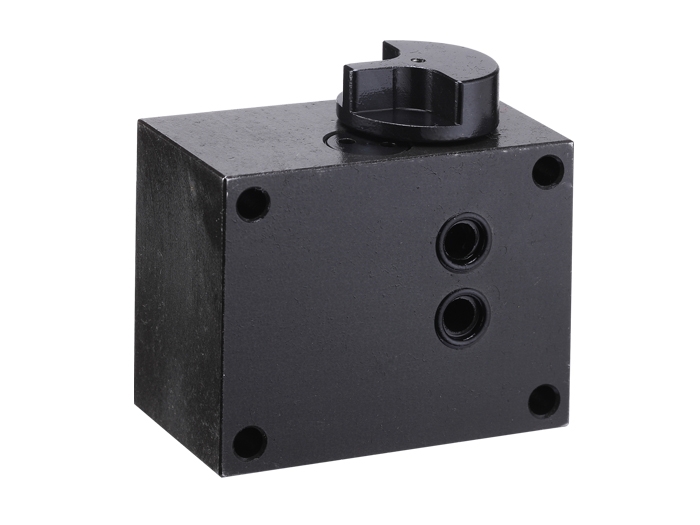

FKC-02L


Model Spec.
Model Free Flow (l/min) Max. Operational Pressure (kgf/cm²) Max. Operational Flow  (l/min) Weight (kg)
FKC-02L 30 70 1, 2, 4, 8 1.3
* The most common max. operational flow is 4 l/min.


Nomenclature
FKC - 02L - 04
a - b c - d

a. Model Name : FKC
b. Thread Connection : 02→1/4"
c. Knob Side : L:knob on the left side
d. Max. Operational Flow :
 01→1 l/min, 02→2 l/min, 04→4 l/min, 08→8 l/min


Dimension
​UNIT:mm
