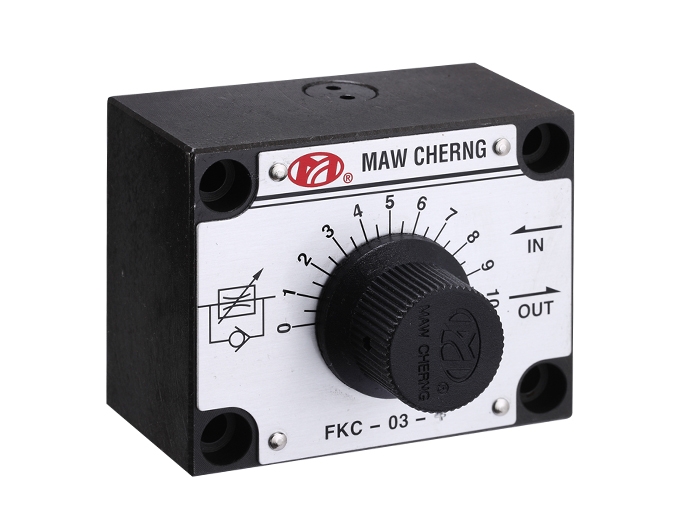

FKC-03


Model Spec.
Model Free Flow (l/min) Max. Operational Pressure (kgf/cm²) Max. Operational Flow  (l/min) Weight (kg)
FKC-03 50 150 1, 2, 4, 8 2
* The most common max. operational flow is 4 l/min.


Nomenclature
FKC - 03 - 04
a - b - c

a. Model Name : FKC
b. Thread Connection : 03→3/8"
c. Max. Operational Flow :
　01→1 l/min, 02→2 l/min, 04→4 l/min, 08→8 l/min


Dimension
​UNIT ：ｍｍ
