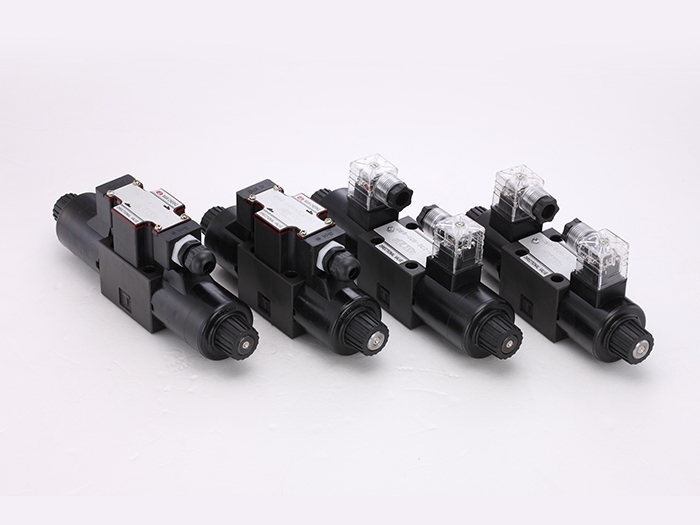

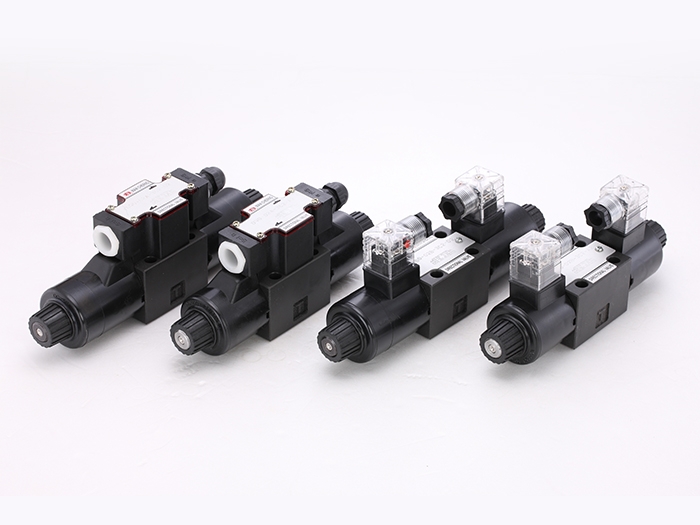

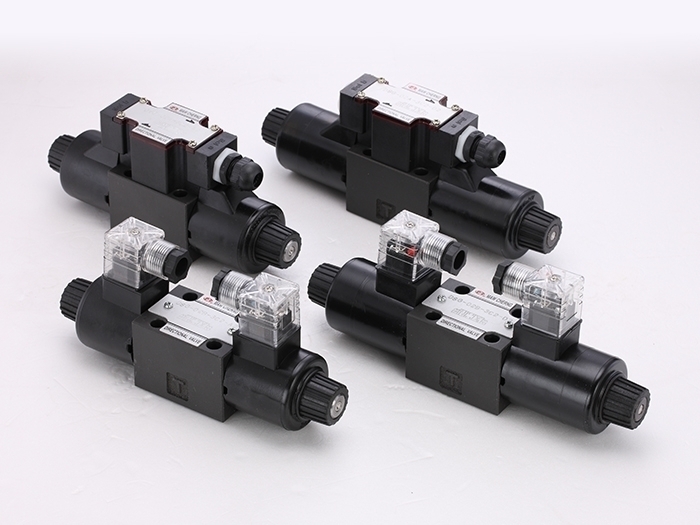

DSG-02 (2 Solenoid)


Specifications & Properties of Solenoid Operated Directional Valves：
Orifice Max Flow (l/min) Max Pressure
(kgf/cm²)		 Tolerant Back Pressure
(kgf/cm²)		 Switch Frequency
(次/分)		 Weight (kg)
AC DC
2 Solenoids 2 Solenoids
02 (1/4") 30-80 210 70-140 AC 300
DC 240		 2 2.2
．Operating oil temperature: 5℃~60℃ (40℉~140℉).
．Filtration mesh: less than 25μm.

Specifications & Properties of Solenoid Directional Valves
Power Source AC DC
Voltage AC110V AC220V DC12V DC24V
Hertz 50 60 50 60 - -
02 (1/4") 1.4 1.2 0.7 0.6 2.4 1.3
0.4 0.34 0.2 0.7
Voltage Tolerance 100~120 200~240 10.8~13.2 21.6~26.4
．Over100MΩ mega-OHMS.
．Caution : In case the solenoid was burned up.
　1. For double solenoid valves don't energize both at the same time as it will result in solenoids burning out.
　2. Avoid energizing solenoid valves, while the solenoids are not installed to the tubes.

ORDER CODES
DSG - 02A - 3C2 - A1
a - b  c - d - e

a. Model Name : DSG
b. Thread Connection : 02→1/4"、03→3/8"
c. Solenoid Appearance : A→Terminal Box Type、B→DIN Connector Type
d. Type of Valves : please refer to the symbol list (type of valves).
e. Power Source : A1→AC110V、A2→AC220V、D1→DC12V、D2→DC24V


SYMBOL LIST (TYPE OF VALVES)
​
