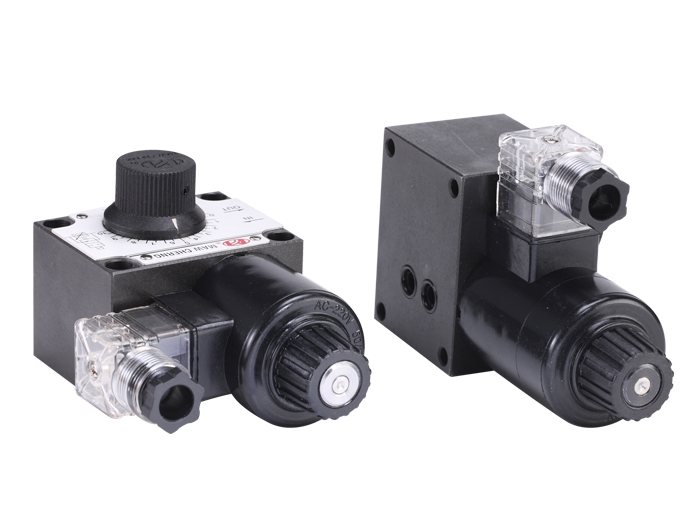

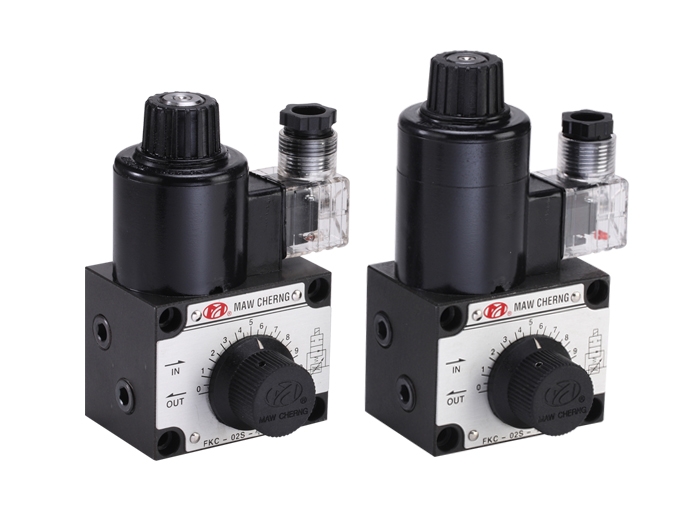

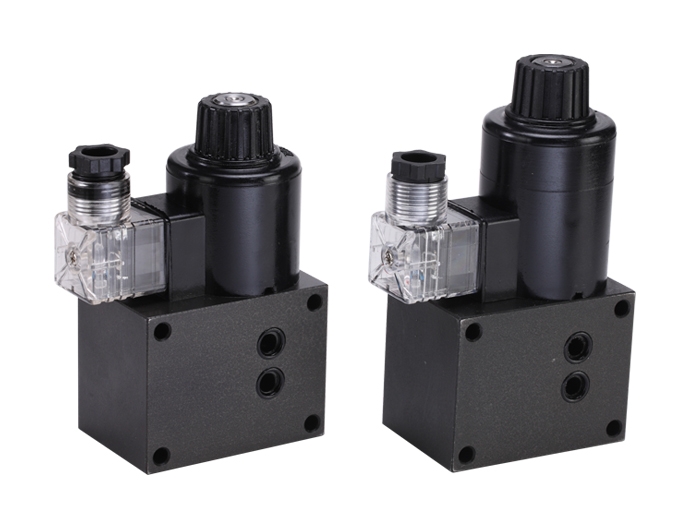

FKC-02S


Model Spec.
Model Free Flow (l/min) Max. Operational Pressure (kgf/cm²) Max. Operational Flow  (l/min) Weight (kg)
AC type DC type
FKC-02S 30 150 1, 2, 4, 8 1.6 1.8
* The most common max. operational flow is 4 l/min.


Nomenclature
FKC - 02S - 04 - A1
a - b c - d - e

a. Model Name : FKC
b. Thread Connection : 02→1/4"
c. Solenoid Type : S
d. Max. Operational Flow : 01→1 l/min、02→2 l/min、04→4 l/min、08→8 l/min
e. Power Source：
　A1→AC-110V 50/60Hz 、A2→AC-220V 50/60Hz ​、D1→DC-12V、D2→DC-24V



Dimension
​UNIT：ｍｍ
