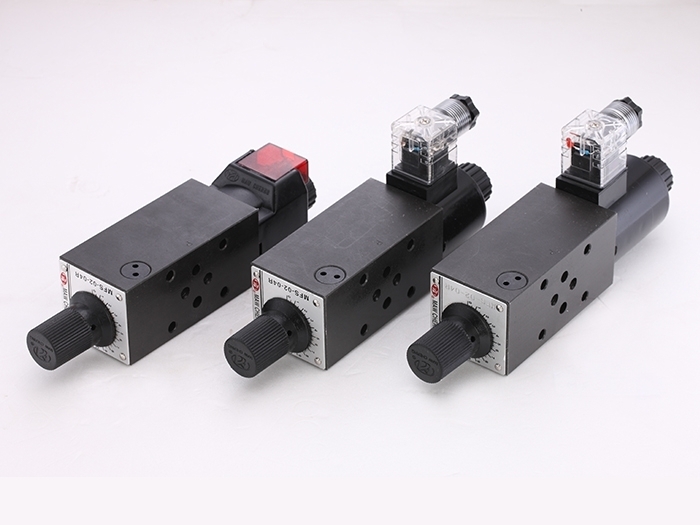

MFS-02



Model Spec.
Model Free Flow (l/min) Max. Operational Pressure (kgf/cm²) Max. Operational Flow (l/min) Weight (kg)
AC type DC type
MFS-02 30 150 1, 2, 4, 8 2.4 2.6
* The most common max. operational flow is 4 l/min.


Nomenclature
MFS - 02B - 04R - A1
a - b c - d e - f

a. Model Name : MFS
b. Thread Connection : 02→1/4"
c. Solenoid Appearance : A→standard type(AC), B→DIN connector type
d. Max. Operational Flow : 01→1 l/min, 02→2 l/min, 04→4 l/min, 08→8 l/min
e. Hydraulic Circuit Type : R, P
f. Power Source :
　A1 : AC110V, 50/60Hz　A2 : AC220V, , 50/60Hz
　D1 : DC12V, D2:DC24V


Dimension
​
UNIT ：mm
